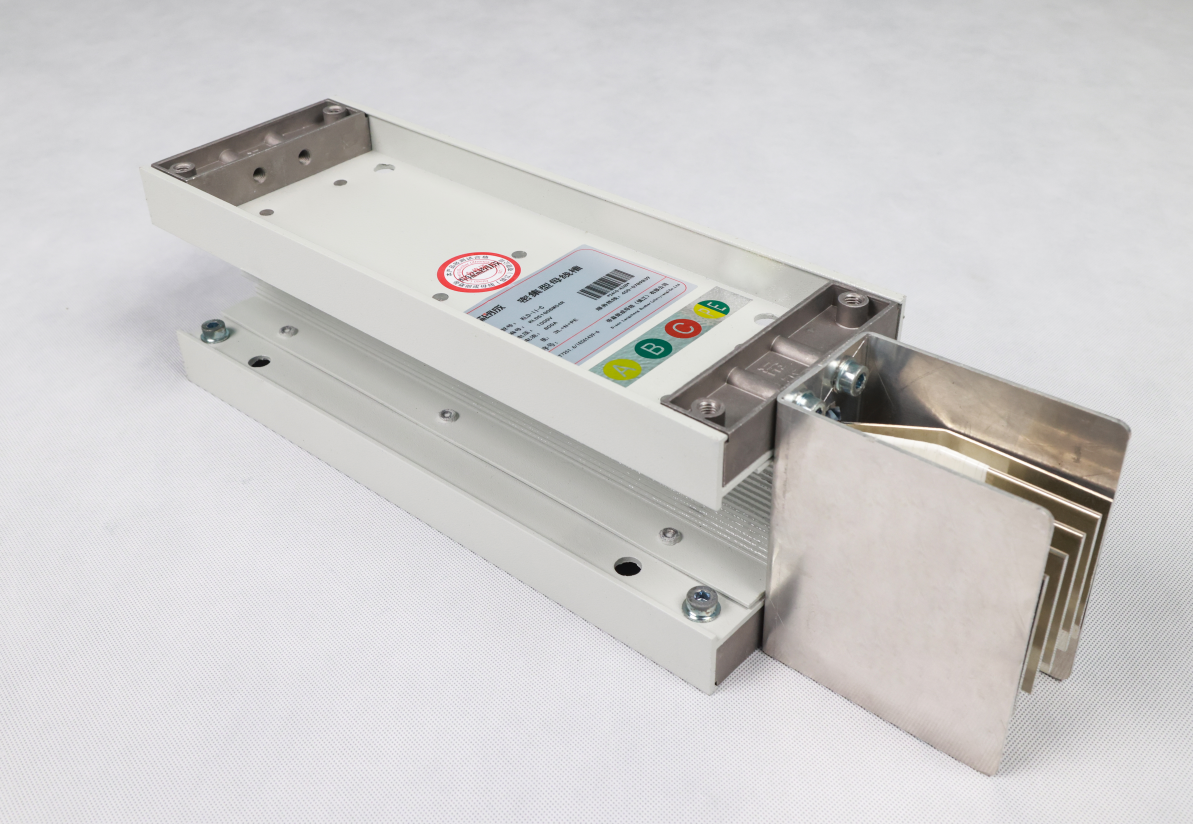

KLD-C dense busbar trunking system
High protection level, high short-circuit withstand current, excellent safety performance, modular design, intelligent integrated energy efficiency management system!
KLD—C密集型母线槽系统
KLD-II-C dense busbar trunking system
Full length dense, superior heat dissipation performance, flexible power distribution, safe and reliable!
KLD-II-C密集型母线槽系统
KLD-NH fire-resistant busbar trunking system
The shell is composed of a mixture of cold-formed thin steel profiles. The side panels on both sides are our factory's unique double-layer hollow structure, which effectively prevents high-temperature gases or open flames from directly entering the interior of the bus duct through tight hollowing. The surface of the busbar trunking shell is galvanized and sprayed with fireproof coating (when exposed to fire, the coating can quickly expand at a geometric speed on the surface of the busbar, forming a dense carbonized insulation layer, sealing all gaps in the busbar shell, and preventing high temperatures from directly entering the inside of the busbar).
KLD—NH耐火母线槽系统
KLD-GM series common box busbar trunking system
The KLD-GM three-phase common box busbar system shell is made of aluminum alloy or weak magnetic steel plate (stainless steel), and the internal conductor is rectangular or slot shaped busbar (copper or aluminum). The system has a rated current of 6300A and a rated working voltage of 35kV. This system can be widely used for current transmission between generator output lines and transformers, or between transformers and high-voltage distribution. It can also be applied to AC and DC excitation circuits of generators, power supply leads for substations or other industrial and civilian facilities.
KLD-GM系列共箱母线槽系统
KLD-CG cast bus duct system
A synthetic resin with high hardness, high density, and high dielectric strength is cast as a whole, which has significant four protection functions: fire prevention, waterproofing, corrosion prevention, explosion prevention, high short-circuit strength, and strong overload capacity.
KLD—CG浇注母线槽系统
KLD-A dense alloy busbar trunking system
The conductor is selected based on the GB5585.2-3 standard and uses high-quality 6063F aluminum bars as the conductive material. The purity of the aluminum bars is ≥ 99.50%. The surface of the conductor is treated with copper plating and then tin plating, with a coating thickness>; 5 μ m further enhances the anti-corrosion capability of the conductor connection and the entire busbar system, thereby further increasing the current carrying capacity of the aluminum busbar.
KLD—A密集型合金母线槽系统
Company advantages
Company advantages
Serve customers

Customer centric, honest and win-win

Quality assurance

All products undergo strict quality testing to ensure their reliability and stability

technical support

Provide all support for user selection, and can be stationed at the project site to guide installation and debugging

Independent research and development

Adhere to independent innovation, have a professional R&D team, use the latest technology and advanced manufacturing processes

after-sale service

We have a highly skilled after-sales service team that can respond quickly within 2 hours

Sales network

The sales and service system is mature, covering all parts of the country, and can timely meet customer needs

About us
About

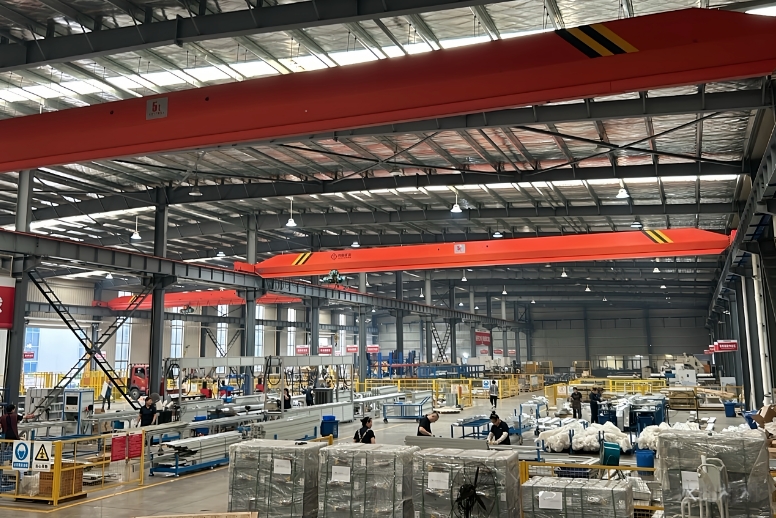

Emperor Langcheng Busbar (Zhenjiang) Co., Ltd. is a company specializing in the research and development, production, and sales of busbar trunking products. It is located in Yangzhong City, Zhenjiang, Jiangsu Province, with a registered capital of 98 million yuan. Belonging to Jiangsu Province's key supported growth enterprises, national high-tech enterprises, Zhenjiang's "contract abiding and trustworthy enterprises", and "AAA" credit enterprises. And have passed ISO9001, ISO14001, and ISO45001 system certifications, salt spray testing, seismic testing certifications, China Quality Certification Center CQC certification, and all obtained certification certificates. The company has a professional R&D team, while introducing imported processing equipment and advanced manufacturing processes, striving to create a series of diversified and high-quality products. Our main products include low-voltage dense busbars, low-voltage air busbars, fire-resistant busbars, waterproof cast busbars, etc. We have also developed intelligent busbar trunking products.
The company always adheres to the core concept of focusing on customers and serving customers, constantly exploring and breaking through, and is committed to creating more value for customers and society!

2015 year
The company was established in
9800 ten thousand
registered capital
7000 m ²
area covered
